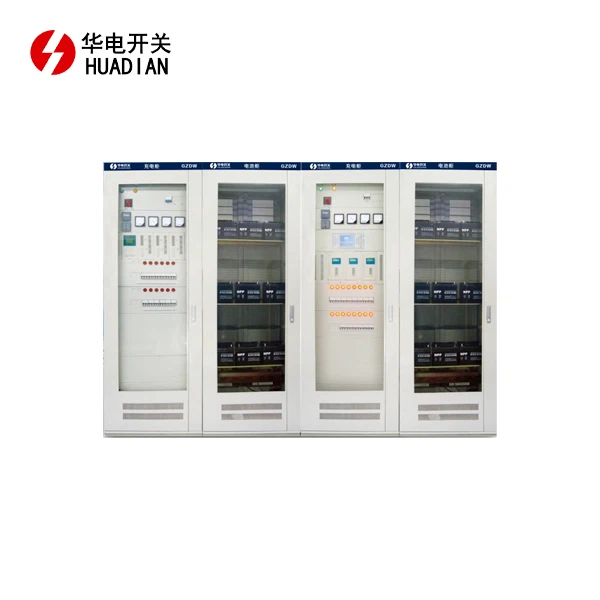

GZDW INTEATION HOL ZEB TAUHAV HLOOV MUS RAU DC LUB ROOJ HUV
GZDW series Cov Khoom Siv Hluav Taws Xob Tshaj DC DC cov khoom siv hluav taws xob tiav yog tsim los ntawm peb lub tuam txhab raws li GB / T 459. Nws yog ib qho tseem ceeb DC lub zog hluav taws xob rau cov hluav taws xob xa hluav taws xob tam sim no. Nws tau siv dav hauv Transformer hloov thiab hloov chaw nres tsheb ntawm 1500KV cov khoom siv xws li kev tswj hwm, ntsuas hluav taws xob xws li kev tswj hwm, teeb meem teeb pom kev zoo, nws tuaj yeem paub qhov tseeb. Nws yog cov kev hloov pauv ntawm DC fais fab kev tsoos.

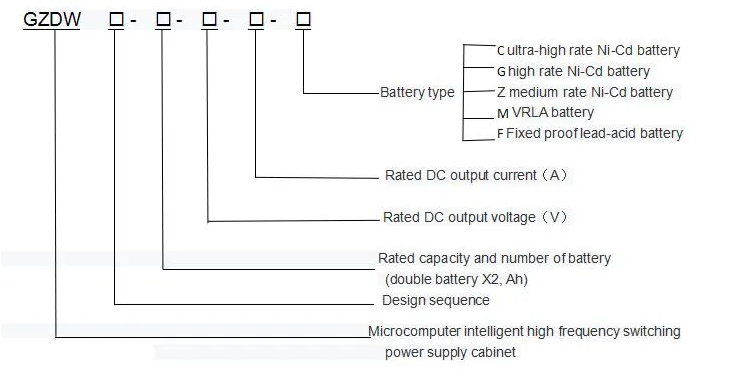

Qauv lub ntsiab lus
Cov yam ntxwv tseem ceeb
Kev Kub Siab Hloov Hloov Kev Siv Tshuab: Adopts High-Powerency hloov fais fab Technology, High efficiency, me me thiab lub teeb yuag
Ntse tswj: Nruab nrog lub microprocessor tswj system kom ua tiav kev xyuas thiab kev tswj hwm
Modular tus qauv: Adopts n +1}} redundant tsim, uas yog yooj yim los tswj thiab nthuav dav
Siab ntseeg tau: Ntau txoj kev tiv thaiv kev tiv thaiv kom ntseeg tau tias ua haujlwm ruaj khov ntawm lub system
LCD Zaub: phooj ywg Hand-tshuab interface, yooj yim rau kev khiav lag luam
Lub ntsiab
Them module: converts ac lub hwj chim rau hauv lub zog dC ruaj khov
Saib xyuas Module: Saib xyuas cov txheej txheem system hauv lub sijhawm tiag
Cov Khoom Siv Roj Teeb: muab hwj huam thaub qab
Chav Chaw Tso Khoom: Muab cov khoom siv hluav taws xob DC ntau zog rau ntau cov khoom siv hluav taws xob
TSEV KAWM NTAWV SAIB XYUAS: Saib xyuas cov txheej txheem rwb thaiv tsev
Cov ntaub ntawv txheej txheem
| Tsis yog. | Zoo siab | Ib yam | Tus nqi |
| 1 | Kev ntsuas hluav taws xob voltage | V | 380±15% |
| 2 | Nyob Qhov Coob | Hz | 50/60±5 |
| 3 | Cov Khoom Siv Hluav Taws Xob Hluav Taws Xob Hluav Taws Xob | V | DC220, DC110 |
| 4 | Cov Zauv Voltage Tau kho tau ntau yam | V | 180~286, 90~143 |
| 5 | Rated Tso Tawm Tam Sim No | A | 6,10,20,30,40,50,60,80,100 |
| 6 | Roj Teeb Muaj Peev Xwm | Ah | 10,20,38,50,65,80,100,150 |
| 7 | DAB TSUAG VALTAGE XEEM | Tsawg dua los yog sib npaug ± 0.5% | |
| 8 | Ruaj khov tam sim no precision | Tsawg dua los yog sib npaug ± 0.5% | |
| 9 | Ripple Factor | Tsawg dua los yog sib npaug ± 0.1% | |
| 10 | Cua txias hom | Yuam huab cua txias rau ntse kub tswj qhov chaw | |
| 11 | Suab nrov | dB | Tsawg dua los yog sib npaug rau 50 |

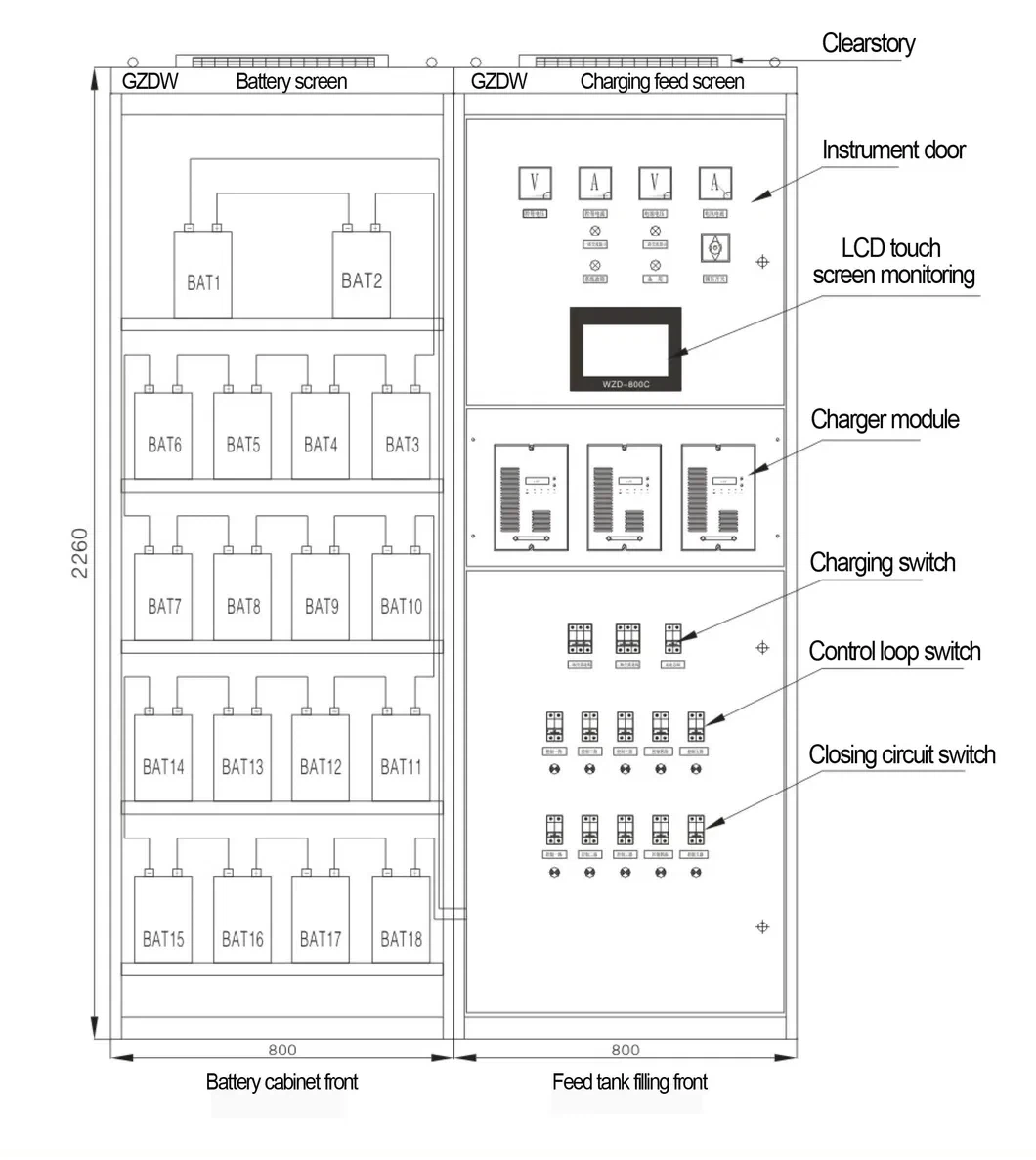

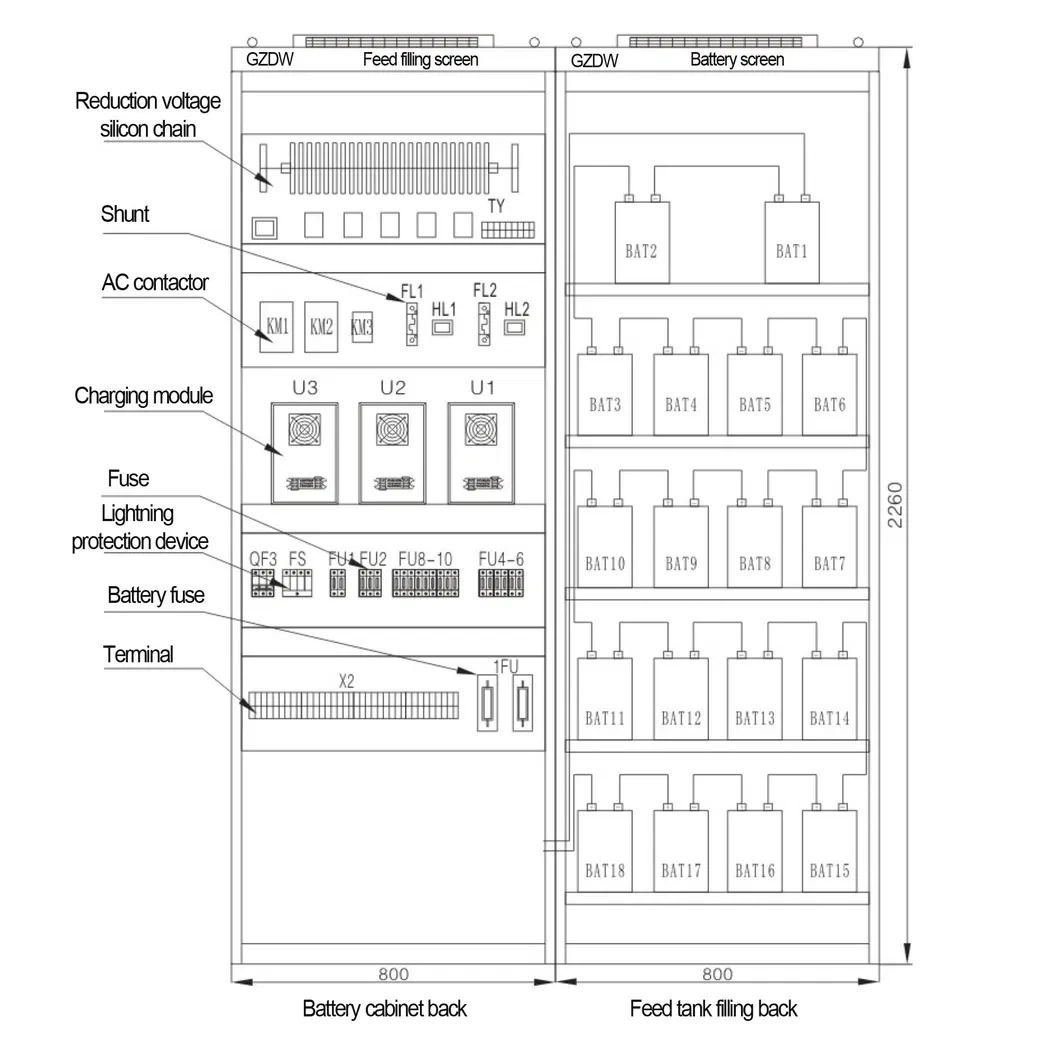

Daim Duab Schematic Ntawm Cov Qauv
Tiv Tauj Peb
Yog tias koj xav tau cov ntaub ntawv ntxiv, cov lus qhia kev kawm, quotes lossis kev pab cuam tom qab muag ntawm GZDW tus ntse hloov DC fais fab txee,
Thov koj xav tiv tauj peb:pannie@hdswitchgear.com, Peb yuav muab kev pabcuam rau koj rau koj!
